Plain Ring Gauge Manufacturer Ahmedabad
Raj Engineers India is a trusted Plain Ring Gauge Manufacturer Ahmedabad and offering high-precision gauges used for checking external diameters of cylindrical components. Plain ring gauges are essential tools in quality control processes where maintaining dimensional accuracy and proper fitment is critical.
These gauges are widely used along with plain plug gauge for internal diameter measurement and snap gauge for quick OD inspection to ensure complete dimensional verification in manufacturing operations.
Experience
Years of Experience
Team Members
Happy Clients

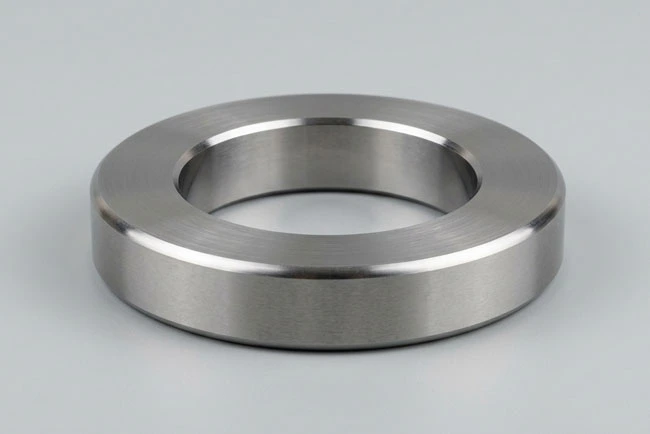

What is a Plain Ring Gauge?
A plain ring gauge is a precise measuring tool that checks the outside diameter of shafts and other cylindrical parts. It helps make sure that the size of the part is within the acceptable range for proper assembly with performance.
Ring gauges are often used in factories where it's important to quickly and accurately measure outside dimensions.
Other Names of Plain Ring Gauge
- Ring Gauge
- OD Checking Gauge
- External Diameter Gauge
- Shaft Checking Gauge
- Go / No-Go Ring Gauge

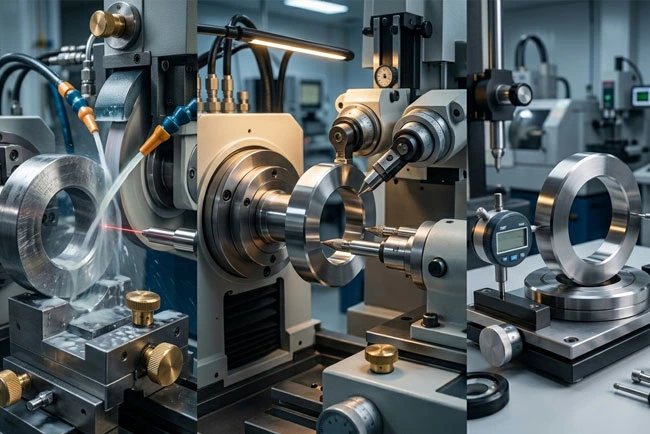

Plain Ring Gauge Manufacturer – Ahmedabad
Types of Plain Ring Gauges
We manufacture and supply precision plain ring gauges across Gujarat and India, including standard and customized specifications for industrial applications.
Types:
- Go / No-Go Ring Gauge
- Taper Ring Gauge
- Thread Ring Gauge
- Special Purpose Ring Gauge
Used for tolerance checking of external diameters, tapered shafts, threaded components and application-specific industrial requirements.
Technical Specifications of Plain Ring Gauge
Material
High-grade tool steel / alloy steel.
Hardness
58-62 HRC.
Accuracy
As per ISO / DIN standards.
Calibration
Available with certification.
Features of Plain Ring Gauges
| Parameter | Details |
|---|---|
| Material | High-grade tool steel / alloy steel |
| Hardness | 58–62 HRC |
| Accuracy | As per ISO / DIN standards |
| Surface Finish | Precision ground and lapped |
| Size Range | Standard and custom sizes available |
| Tolerance | As per application requirement |
| Calibration | Available with certification |
Benefits of Using Plain Ring Gauges
High dimensional accuracy
Smooth surface finish
Excellent wear resistance
Long service life
Easy handling and inspection
Reliable performance in production
Applications of Plain Ring Gauges
Accurate External Measurement
Ensures precise checking of shaft diameters.
Improved Product Quality
Maintains consistency in manufacturing.
Reduces Rejection Rates
Minimizes errors during production.
Faster Inspection
Suitable for mass production environments.
Cost Effective
Reduces rework and production losses.

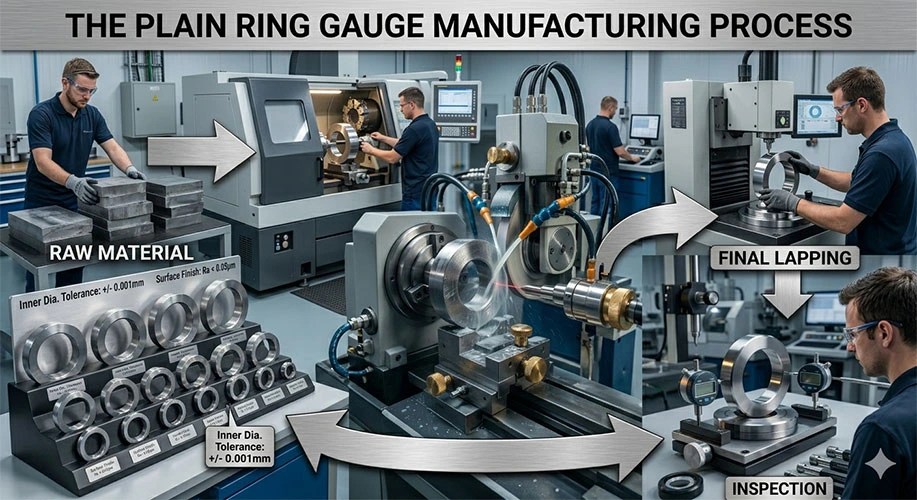

Manufacturing Process
Manufacturing Process
Selection of high-quality raw material
Precision selection for maximum durability.
Precision CNC machining
Advanced shaping for technical accuracy.
Heat treatment for hardness
Achieving 58–62 HRC for superior wear resistance.
Grinding and lapping for accuracy
Ensuring precise surface finish and dimensional control.
Final inspection and quality testing
Final verification of all quality parameters.
Quality Assurance
Each ring gauge undergoes strict quality checks including:
Why Choose Raj Engineers India?
Custom Plain Ring Gauge Solutions
We provide customized ring gauges based on:
Cities We Serve Across India
We deliver precision gauges on time and with consistent quality to industries in major cities across India for use in manufacturing and engineering.
Related Gauges
Frequently Asked Questions – Plain Ring Gauge
It is used to check the external diameter of shafts and cylindrical components.
The GO gauge checks maximum material condition, while the NO-GO gauge verifies minimum tolerance limits.
Yes, they can be manufactured as per drawings and specific requirements.
Automotive, CNC machining, textile machinery, and general engineering industries.
High-grade hardened tool steel is commonly used.
Through precision grinding, lapping, and strict quality inspection processes.
Yes, supply is available across Ahmedabad, Gujarat, and major industrial cities in India.
Conclusion
Plain ring gauges are important tools for checking the outside diameter accurately and keeping the same size in manufacturing processes. High-quality gauges help make products better, cut down on mistakes, and make sure they work reliably in industrial settings.
